LIQUID FILLING MACHINE
Model: DGP-CZ-2B Semi-Automatic Weighing Filling Machine
Filling Range: 1—8kg
After-sale Services:
a) Warranty: 1 year.
b) We will give you long time technology supply.
c) We can dispatch our engineer to you for installing and debugging machines. Engineer’s round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer’s salary will be USD50.00/day/person.
d) We can also supply you mounting process, so your engineers can fit and debug machines by themselves.

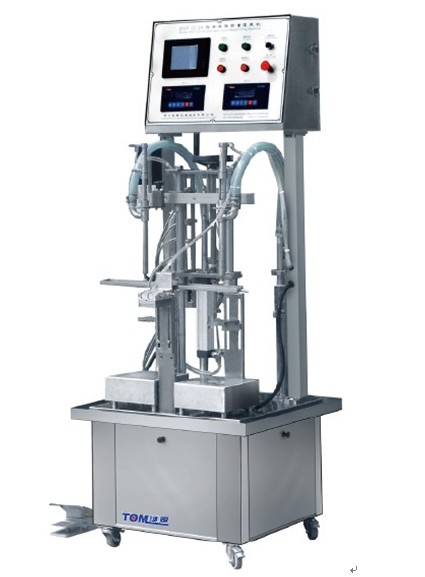

Picture of the machine:
Introduction:
a) Main Characteristic: This machine with two filling heads is aim to liquid filling between 1kg and 8kg,blanking heads can embed to the bottom of cask to fill. It can reduce occur foam it has easy structure, accurate fix quantify, large yield and so on.
b) Main Performance Parameter:
Machine External dimension: (L×W×H): 800mm×800mm×2000mm
mechine Weight: 280kg
Container mouth Size: Diameter: ≥φ35mm
Maximum Container Size: diameter φ200mm×300mm
Power supply:AC220V;50HZ(or according to client voltage requirement)
Power: 0.5KW
Filling volume range:1kg-8kg
Error Range:±0.2%F.S.
Pneumatic (air-operated) source:0.6Mpa clean and Stably compressed air
Filling heads number:2
Production Capacity:<300 Drums/hour
Relative humidity of working environment:<95%(no condensation)
Temperature of working environment:0-40℃
